MKUnitGenerator Class Reference

MKUnitGenerators are the building blocks of DSP music synthesis. More...

#import <MKUnitGenerator.h>

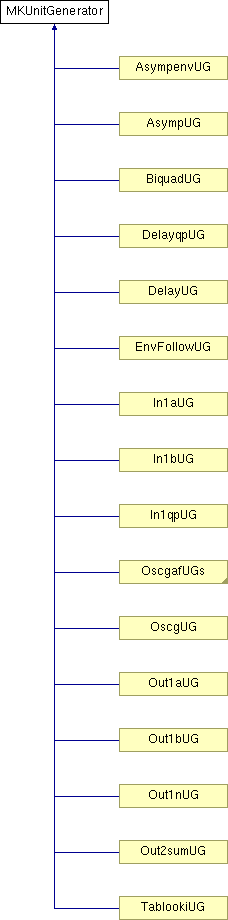

Inheritance diagram for MKUnitGenerator:

List of all members.

Public Member Functions
(id)	- moved
	You never invoke this method.
(id)	- init
	Invoke this method when the receiver is is created, after its code is loaded.
(id)	- run
	Starts the receiver by sending [self runSelf] and then sets its status to MK_running.
(id)	- runSelf
	Subclass implementation of this method provides instructions for making the object's DSP code usable (as defined by the subclass).
(double)	- finish
	Finishes the receiver's activity by sending finishSelf and then sets its status to MK_finishing.
(double)	- finishSelf
	A subclass may override this method to provide instructions for finishing.
(id)	- idle
	Idles the receiver by sending [self idleSelf] and then sets its status to MK_idle.
(id)	- idleSelf
	A subclass may override this method to provide instructions for idling.
(int)	- status
	Returns the receiver's status, one of MK_idle, MK_running, and MK_finishing.
(MKOrchMemStruct *)	- relocation
	Returns a pointer to the structure that describes the receiver's location on the DSP.
(BOOL)	- runsAfter:
	Returns YES if the receiver is executed after aUnitGenerator.
(unsigned int)	- argCount
	Returns the number of memory arguments in the receiver's DSP code.
(MKLeafUGStruct *)	- classInfo
	Returns a pointer to the receiver's leaf structure.
(MKOrchMemStruct *)	- resources
	Return a pointer to the structure that describes the receiver's memory requirements.
(id)	- orchestra
	Returns the receiver's MKOrchestra object.
(BOOL)	- isFreeable
	Invoked by the MKOrchestra to determine whether the receiver may be freed.
(id)	- synthPatch
	Returns the MKSynthPatch that the receiver is part of, if any.
(BOOL)	- isAllocated
	Returns YES if the receiver has been allocated (by its MKOrchestra), NO if it hasn't.
(id)	- setDatumArg:to:
	Sets the datum-valued argument argNum to val.
(id)	- setDatumArg:toLong:
	Sets the datum-valued argument argNum to val.
(id)	- setAddressArg:to:
	Sets the addresst-valued argument argNum to memoryObj.
(id)	- setAddressArg:toInt:
	Sets the addresst-valued argument argNum to address.
(id)	- setAddressArgToSink:
	Sets the address-valued argument argNum to the sink patchpoint.
(id)	- setAddressArgToZero:
	Sets the address-valued argument argNum to a zero patchpoint.
(id)	- freeSelf
	You never invoke this method directly, it's invoked from free.
(int)	- referenceCount
	If this object is installed in its MKOrchestra's shared table, returns the number of objects that have allocated it.
(id)	- MKSetUGDatumArg
	Set DSP unit generator arguments.
(id)	- MKSetUGDatumArgLong
	Set DSP unit generator arguments.
(id)	- MKSetUGAddressArg
	Set DSP unit generator arguments.
(id)	- MKSetUGAddressArgToInt
	Set DSP unit generator arguments.
(id)	- writeSymbolsToStream:
	Writes the MKUnitGenerator as a portion of a DSP .lod file.
(int)	- instanceNumber
	Returns a low integer that uniquely identifies this MKUnitGenerator.
Static Public Member Functions
(MKMasterUGStruct *)	+ masterUGPtr
	Returns the receiver's master structure.
(MKLeafUGStruct *)	+ classInfo
	Returns the receiver's leaf structure.
(unsigned int)	+ argCount
	Returns the number of memory arguments in the receiver's DSP code.
(BOOL)	+ shouldOptimize:
	A subclass can override this method to reduce the command stream on an argument-by-argument basis, returning YES if arg should be optimized, NO if it shouldn't.
(NSString *)	+ argName:
	Returns the name of the receiver's argNum'th DSP code argument, as declared in the DSP unit generator source code.
(id)	+ orchestraClass
	This method always returns the MKOrchestra class.
(DSPMemorySpace)	+ argSpace:
	Returns the memory space to or from which the address-valued argument argNum reads or writes.
(id)	+ enableErrorChecking:
	Sets whether various error checks are done, such as verifying that MKUnitGenerator arguments and MKSynthData memory spaces are correct.

---

Detailed Description

MKUnitGenerators are the building blocks of DSP music synthesis.

Each MKUnitGenerator subclass represents a modular DSP program (a unit generator) that provides a particular synthesis operation, such as waveform generation, filtering, and mixing. Sound is synthesized by downloading unit generators to the DSP, interconnecting them, and making them run.

To download a copy of a particular unit generator to the DSP, you send the allocUnitGenerator: message to an open MKOrchestra object, passing the class of the MKUnitGenerator that represents the unit generator. For example, to download a copy of the unoise unit generator (which generates white noise), you allocate an instance of the UnoiseUG class:

// Create an MKOrchestra and a variable for the MKUnitGenerator.

MKOrchestra *anOrch = [MKOrchestra new];
id aNoise;
// Open the MKOrchestra; check for failure.
if (![anOrch open])
. . .

// The MKUnitGenerator object is created at the same time that the
// unit generator program is download to the DSP.

aNoise = [anOrch allocateUnitGenerator: [UnoiseUGx class]];

Notice that the receiver of the class message in the final line of the example is UnoiseUGx. The “x” is explained later in this class description.

To connect two MKUnitGenerators together, you allocate a patchpoint through which they can communicate. A patchpoint is a type of MKSynthData object that's designed to be used for just this purpose, to communicate data from the output of one MKUnitGenerator to the input of another. For example, to connect our UnoiseUGx object to a sound-output MKUnitGenerator, such as Out1aUGx, a patchpoint must be allocated and then passed as the argument in an invocation of UnoiseUGx's setOutput: method and Out1aUGx's setInput: method. But in order to do this, you have to understand a little bit about DSP memory spaces:

The DSP's memory is divided into three sections, P, X, and Y: P memory holds program data; X and Y contain data. Unit generator programs are always downloaded to P memory; the memory represented by a MKSynthData object is allocated in either X or Y, as the argument to MKOrchestra's allocSynthData: method is MK_xData or MK_yData. In general, there's no difference between the two data memory spaces (the one difference is mentioned below); dividing data memory into two partitions allows the DSP to be used more efficiently (although it presents some complications to the programmer, which you're living through right now). Most of the methods defined in the MKUnitGenerator class are subclass responsiblities or are provided to help define the functionality of a subclass. The most important of these are runSelf, idleSelf, and finishSelf. These methods implement the behavior of the object in response to the run, finish, and idle messages, respectively.

In addition to implementing the subclass responsibility methods, you should also provide methods for poking values into the memory arguments of the DSP unit generator that the MKUnitGenerator represents. For example, an oscillator MKUnitGenerator would provide a setFreq: method to set the frequency of the unit generator that's running on the DSP.

MKUnitGenerator subclasses are created from DSP macro code. The utility dspwrap turns a DSP macro into a MKUnitGenerator master class, implementing some of the subclass responsibility methods.

It also creates a number of classes that inherit from your MKUnitGenerator subclass; these are called leaf classes. A leaf class represents a specific memory space configuration on the DSP. For example, OnePoleUG is a one-pole filter MKUnitGenerator master class provided by the Music Kit. It has an input and an output argument that refer to either the x or the y memory spaces on the DSP. To provide for all memory space configurations, dspwrap creates the leaf classes OnePoleUGxx, OnePoleUGxy, OnePoleUGyx, and OnePoleUGyy.

You can modify a master class - for example, the setFreq: method mentioned above would be implemented in a master class - but you never create an instance of one. MKUnitGenerator objects are always instances of leaf classes.

See also:

MKSynthData, MKSynthPatch, MKOrchestra

---

Member Function Documentation

+ (MKMasterUGStruct *) masterUGPtr

Returns the receiver's master structure.

A subclass responsibility, this method is automatically generated by dspwrap.

Returns:

Returns a MKMasterUGStruct *.

+ (MKLeafUGStruct *) classInfo

Returns the receiver's leaf structure.

A subclass responsibility, this method is automatically generated by dspwrap.

Returns:

Returns a MKLeafUGStruct *.

+ (unsigned int) argCount

Returns the number of memory arguments in the receiver's DSP code.

Returns:

Returns an unsigned.

- (id) moved

You never invoke this method.

It's invoked by the MKOrchestra if it had to move the receiver during compaction. A subclass can override this method to perform special behavior. The default does nothing. The return value is ignored.

Returns:

Returns an id.

+ (BOOL) shouldOptimize:

(unsigned)

arg

A subclass can override this method to reduce the command stream on an argument-by-argument basis, returning YES if arg should be optimized, NO if it shouldn't.

The default implementation always returns NO.

Optimization of means that if the argument it's set to the same value twice, the second setting is supressed. You should never optimize an argument that the receiver's DSP code itself might change.

Argument optimization applies to the entire class - all instances of the MKUnitGenerators leaf classes inherit an argument's optimization - and it can't be changed during a performance.

Parameters:

arg

is an unsigned.

Returns:

Returns a BOOL.

Reimplemented in AsympenvUG, AsympUG, BiquadUG, DelayqpUG, DelayUG, In1aUG, In1bUG, OscgafUGs, OscgUG, Out1aUG, Out1bUG, Out1nUG, Out2sumUG, and TablookiUG.

- (id) init

Invoke this method when the receiver is is created, after its code is loaded.

If this method returns nil, the receiver is automatically freed by the MKOrchestra. A subclass implementation should send [super init] before doing its own initialization and should immediately return nil if [super init] returns nil. The default implementation returns self.

Returns:

Returns an id.

Reimplemented in EnvFollowUG, and In1qpUG.

- (id) run

Starts the receiver by sending [self runSelf] and then sets its status to MK_running.

You never subclass this method; runSelf provides subclass runtime instructions. A MKUnitGenerator must be sent run before it can be used.

Returns:

Returns an id.

- (id) runSelf

Subclass implementation of this method provides instructions for making the object's DSP code usable (as defined by the subclass).

You never invoke this method directly, it's invoked automatically by the run method. The default does nothing and returns the receiver.

Returns:

Returns an id.

Reimplemented in AsympenvUG, AsympUG, DelayqpUG, DelayUG, EnvFollowUG, In1aUG, In1bUG, In1qpUG, OscgafUGs, OscgUG, Out1aUG, Out1bUG, Out1nUG, and Out2sumUG.

- (double) finish

Finishes the receiver's activity by sending finishSelf and then sets its status to MK_finishing.

You never subclass this method; finishSelf provides subclass finishing instructions. Returns the value of [self finishSelf], which is taken as the amount of time, in seconds, before the receiver can be idled.

Returns:

Returns a double.

- (double) finishSelf

A subclass may override this method to provide instructions for finishing.

Returns the amount of time needed to finish; The default returns 0.0.

Returns:

Returns a double.

Reimplemented in AsympenvUG, and AsympUG.

- (id) idle

Idles the receiver by sending [self idleSelf] and then sets its status to MK_idle.

You never subclass this method; idleSelf provides subclass idle instructions. The idle state is defined as the MKUnitGenerator's producing no output.

Returns:

Returns an id.

- (id) idleSelf

A subclass may override this method to provide instructions for idling.

The default does nothing and returns the receiver. Most MKUnitGenerator subclasses implement idleSelf to patch their outputs to sink, a location that, by convention, nobody reads. MKUnitGenerators that have inputs, such as Out2sumUG, implement idleSelf to patch their inputs to zero, a location that always holds the value 0.0.

Returns:

Returns an id.

Reimplemented in AsympenvUG, AsympUG, DelayqpUG, DelayUG, EnvFollowUG, In1qpUG, OscgafUGs, OscgUG, Out2sumUG, and TablookiUG.

- (int) status

Returns the receiver's status, one of MK_idle, MK_running, and MK_finishing.

Returns:

Returns an int.

- (MKOrchMemStruct *) relocation

Returns a pointer to the structure that describes the receiver's location on the DSP.

You can access the fields of the structure without caching it first, for example:

[aUnitGenerator relocation]->pLoop

returns the starting location of the receiver's pLoop code.

Returns:

Returns a MKOrchMemStruct *.

- (BOOL) runsAfter:

(MKUnitGenerator *)

aUnitGenerator

Returns YES if the receiver is executed after aUnitGenerator.

Execution order is determined by comparing the objects' pLoop addresses.

Parameters:

aUnitGenerator

is an id.

Returns:

Returns a BOOL.

- (unsigned int) argCount

Returns the number of memory arguments in the receiver's DSP code.

The same value is returned by the argCount class method.

Returns:

Returns an unsigned.

- (MKLeafUGStruct *) classInfo

Returns a pointer to the receiver's leaf structure.

The same structure pointer is returned by the classInfo class method.

Returns:

Returns a MKLeafUGStruct *.

- (MKOrchMemStruct *) resources

Return a pointer to the structure that describes the receiver's memory requirements.

Each field of the structure represents a particular MKOrchestra memory segment; its value represents the number of words that the segment requires.

Returns:

Returns a MKOrchMemStruct *.

+ (NSString *) argName:

(unsigned)

argNum

Returns the name of the receiver's argNum'th DSP code argument, as declared in the DSP unit generator source code.

The name isn't copied.

Parameters:

argNum

is an unsigned.

Returns:

Returns an NSString*.

+ (id) orchestraClass

This method always returns the MKOrchestra class.

It's provided for applications that extend the MusicKit to use other synthesis hardware. If you're using more than one type of hardware, you should create a subclass of MKUnitGenerator for each. The default hardware is that represented by MKOrchestra, the DSP56001.

Returns:

Returns an id.

- (id) orchestra

Returns the receiver's MKOrchestra object.

Returns:

Returns an id.

- (BOOL) isFreeable

Invoked by the MKOrchestra to determine whether the receiver may be freed.

Returns YES if it can, NO if it can't. (A MKUnitGenerator can be freed if it isn't currently allocated or its MKSynthPatch can be freed).

Returns:

Returns a BOOL.

- (id) synthPatch

Returns the MKSynthPatch that the receiver is part of, if any.

Returns:

Returns an id.

- (BOOL) isAllocated

Returns YES if the receiver has been allocated (by its MKOrchestra), NO if it hasn't.

Returns:

Returns a BOOL.

- (id) setDatumArg:		(unsigned)	argNum
to:		(DSPDatum)	val

Sets the datum-valued argument argNum to val.

If argNum is an L-space argument (two 24-bit words), its high-order word is set to val and its low-order word is cleared. If argNum (as an index) is out of bounds, an error is generated and nil is returned. Otherwise returns the receiver. This is ordinarily invoked by a subclass.

Parameters:

	argNum	is an unsigned.
	val	is a DSPDatum.

Returns:

Returns an id.

- (id) setDatumArg:		(unsigned)	argNum
toLong:		(DSPLongDatum *)	val

Sets the datum-valued argument argNum to val.

If argNum isn't an L-space argument (it can't accommodate a 48-bit value) its value is set to the high 24-bits of val. If argNum (as an index) is out of bounds, an error is generated and nil is returned. Otherwise returns the receiver. This is ordinarily only invoked by a subclass.

Parameters:

	argNum	is an unsigned.
	val	is a DSPLongDatum *.

Returns:

Returns an id.

- (id) setAddressArg:		(unsigned)	argNum
to:		(id)	memoryObj

Sets the addresst-valued argument argNum to memoryObj.

If argNum (as an index) is out of bounds, an error is generated and nil is returned. Otherwise returns the receiver. This is ordinarily only invoked by a subclass.

Parameters:

	argNum	is an unsigned.
	memoryObj	is an id.

Returns:

Returns an id.

- (id) setAddressArg:		(unsigned)	argNum
toInt:		(DSPAddress)	address

Sets the addresst-valued argument argNum to address.

If argNum (as an index) is out of bounds, an error is generated and nil is returned. Otherwise returns the receiver. This is ordinarily only invoked by a subclass.

Parameters:

	argNum	is an unsigned.
	address	is a DSPAddress.

Returns:

Returns an id.

- (id) setAddressArgToSink:

(unsigned)

argNum

Sets the address-valued argument argNum to the sink patchpoint.

(Sink is a location which, by convention, is never read.) If argNum (as an index) is out of bounds, an error is generated and nil is returned. Otherwise returns the receiver. This is ordinarily only invoked by a subclass.

Parameters:

argNum

is an unsigned.

Returns:

Returns an id.

- (id) setAddressArgToZero:

(unsigned)

argNum

Sets the address-valued argument argNum to a zero patchpoint.

(A zero patchpoint is a location with a constant 0 value; by convention the patchpoint is never written to.) If argNum (as an index) is out of bounds, an error is generated and nil is returned. Otherwise returns the receiver. This is ordinarily only invoked by a subclass.

Parameters:

argNum

is an unsigned.

Returns:

Returns an id.

+ (DSPMemorySpace) argSpace:

(unsigned)

argNum

Returns the memory space to or from which the address-valued argument argNum reads or writes.

If argNum isn't an address-valued argument, returns DSP_MS_N.

Parameters:

argNum

is an unsigned.

Returns:

Returns a DSPMemorySpace.

- (id) freeSelf

You never invoke this method directly, it's invoked from free.

A subclass may implement this method to provide specialized behavor before the object is freed. For example, you might want to release locally-allocated MKSynthData.

Returns:

Returns an id.

+ (id) enableErrorChecking:

(BOOL)

yesOrNo

Sets whether various error checks are done, such as verifying that MKUnitGenerator arguments and MKSynthData memory spaces are correct.

The default is NO. You should send enableErrorChecking:YES when you are debugging MKUnitGenerators or MKSynthPatches, then disable it when your application is finished.

Parameters:

yesOrNo

is a BOOL.

Returns:

Returns an id.

- (int) referenceCount

If this object is installed in its MKOrchestra's shared table, returns the number of objects that have allocated it.

Otherwise returns 1 if it is allocated, 0 if it is not.

Returns:

Returns an int.

- (id) MKSetUGDatumArg		(MKUnitGenerator *)	ug
		(unsigned)	argNum
		(DSPDatum)	value

Set DSP unit generator arguments.

These functions let you set the value of a DSP unit generator argument; they can only be called as part of the implementation of a MKUnitGenerator subclass. The arguments to all four functions are similar:

• ug is the MKUnitGenerator object that represents the DSP unit generator; because of the nature of these functions, ug can only be self.
• argNum is the integer that identifies the unit generator argument that you wish to affect.
• The final argument is (or gives the address of) the value that you wish to set the unit generator argument to.

MKSetUGDatumArg and MKSetUGDatumArgLong set data-valued unit generator arguments. The former takes a DSPDatum (int) directly and sets the unit generator argument to the rightmost 24 bits of this value. The latter is used to set 48-bit DSP values; it takes, as the value argument, a pointer to a DSPLongDatum value. DSPLongDatum is defined as a DSPFix48 structure:

   typedef struct _DSPFix48 {
   	int high24;		     // High order 24 bits, right justified
   	int low24;		     // Low order 24 bits, right justified
   } DSPFix48;

If the argument identifed by argNum isn't allocated in the DSP's long memory, then only the high24 field of the structure is taken as the value .

Parameters:

	ug	is a MKUnitGenerator instance.
	argNum	is an unsigned.
	value	is a DSPDatum.

Returns:

If argNum is out of bounds, or if an address-setting function is used to set a data argument (or vice versa), an error is generated and nil is returned; otherwise the ug argument, which is always self, is returned.

- (id) MKSetUGDatumArgLong		(MKUnitGenerator *)	ug
		(unsigned)	argNum
		(DSPLongDatum *)	value

Set DSP unit generator arguments.

These functions let you set the value of a DSP unit generator argument; they can only be called as part of the implementation of a MKUnitGenerator subclass. The arguments to all four functions are similar:

• ug is the MKUnitGenerator object that represents the DSP unit generator; because of the nature of these functions, ug can only be self.
• argNum is the integer that identifies the unit generator argument that you wish to affect.
• The final argument is (or gives the address of) the value that you wish to set the unit generator argument to.

MKSetUGDatumArg and MKSetUGDatumArgLong set data-valued unit generator arguments. The former takes a DSPDatum (int) directly and sets the unit generator argument to the rightmost 24 bits of this value. The latter is used to set 48-bit DSP values; it takes, as the value argument, a pointer to a DSPLongDatum value. DSPLongDatum is defined as a DSPFix48 structure:

   typedef struct _DSPFix48 {
   	int high24;		     // High order 24 bits, right justified
   	int low24;		     // Low order 24 bits, right justified
   } DSPFix48;

If the argument identifed by argNum isn't allocated in the DSP's long memory, then only the high24 field of the structure is taken as the value .

Parameters:

	ug	is a MKUnitGenerator instance.
	argNum	is an unsigned.
	value	is a DSPLongDatum *.

Returns:

If argNum is out of bounds, or if an address-setting function is used to set a data argument (or vice versa), an error is generated and nil is returned; otherwise the ug argument, which is always self, is returned.

- (id) MKSetUGAddressArg		(MKUnitGenerator *)	ug
		(unsigned)	argNum
		(id)	memoryObj

Set DSP unit generator arguments.

These functions let you set the value of a DSP unit generator argument; they can only be called as part of the implementation of a MKUnitGenerator subclass. The arguments to all four functions are similar:

• ug is the MKUnitGenerator object that represents the DSP unit generator; because of the nature of these functions, ug can only be self.
• argNum is the integer that identifies the unit generator argument that you wish to affect.
• The final argument is (or gives the address of) the value that you wish to set the unit generator argument to.

MKSetUGAddressArg and MKSetUGAddressArgToInt are used to set address-valued unit generator arguments. The former sets the argument to the DSP address of obj, which must be a SynthData object. The latter function sets it directly as the value of its address argument. The DSPAddress data type is defined as an int.

If the argument identifed by argNum isn't allocated in the DSP's long memory, then only the high24 field of the structure is taken as the value .

Parameters:

	ug	is a MKUnitGenerator instance.
	argNum	is an unsigned.
	memoryObj	is an MKSynthData.

Returns:

If argNum is out of bounds, or if an address-setting function is used to set a data argument (or vice versa), an error is generated and nil is returned; otherwise the ug argument, which is always self, is returned.

- (id) MKSetUGAddressArgToInt		(MKUnitGenerator *)	ug
		(unsigned)	argNum
		(DSPAddress)	address

Set DSP unit generator arguments.

These functions let you set the value of a DSP unit generator argument; they can only be called as part of the implementation of a MKUnitGenerator subclass. The arguments to all four functions are similar:

• ug is the MKUnitGenerator object that represents the DSP unit generator; because of the nature of these functions, ug can only be self.
• argNum is the integer that identifies the unit generator argument that you wish to affect.
• The final argument is (or gives the address of) the value that you wish to set the unit generator argument to.

MKSetUGAddressArg and MKSetUGAddressArgToInt are used to set address-valued unit generator arguments. The former sets the argument to the DSP address of obj, which must be a SynthData object. The latter function sets it directly as the value of its address argument. The DSPAddress data type is defined as an int.

If the argument identifed by argNum isn't allocated in the DSP's long memory, then only the high24 field of the structure is taken as the value .

Parameters:

	ug	is a MKUnitGenerator instance.
	argNum	is an unsigned.
	address	is a DSPAddress.

Returns:

If argNum is out of bounds, or if an address-setting function is used to set a data argument (or vice versa), an error is generated and nil is returned; otherwise the ug argument, which is always self, is returned.

- (id) writeSymbolsToStream:

(NSMutableData *)

s

Writes the MKUnitGenerator as a portion of a DSP .lod file.

You normally don't invoked this method. It's invoked by MKOrchestra's writeSymbolTable:.

Parameters:

s

is a NSMutableData.

Returns:

Returns an id.

- (int) instanceNumber

Returns a low integer that uniquely identifies this MKUnitGenerator.

This integer is unique for the duration of the execution of the program, unlike object id values, which may be reassigned after an object is freed.

Returns:

Returns an int.

---

The documentation for this class was generated from the following file:

• MKUnitGenerator.h
